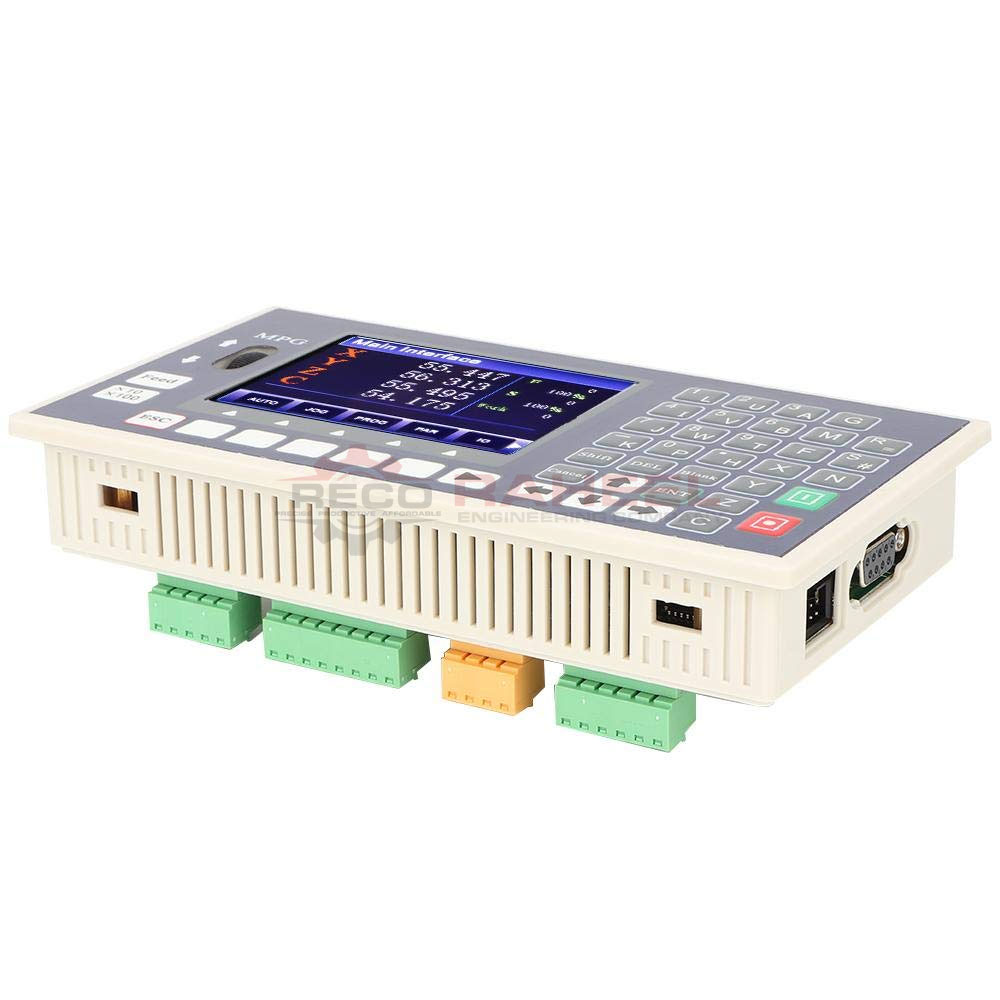

TC55H-single-axis-controller

TC55H is an upgrading version of TC55. It can control 3 feeding axes, 1 analog spindle. It is equipped with 16 input ports and 8 output ports, supporting importing G code files from a USB stick. Support saving the current coordinates after power off.
USB port, import picture, and boot picture

TC55H can control 2 feeding axes,1 analog spindle.It is equipped with 16 input ports and 8 output port, supporting importing G code files and boot picture from a USB stick

Technical Specifications

Minimum data unit 0.001 mm
Maximum data size ± 99999.999mm
Maximum Speed: 9000mm/min (pulse is 0.001mm)
Maximum pulse output frequency 400KHz
Axis 1-2 (X,Y)
Linear interpolation and circular interpolation.
Electric Gear: numerator :1-99999 denominator: 1-99999
USB: Importing program and boot picture

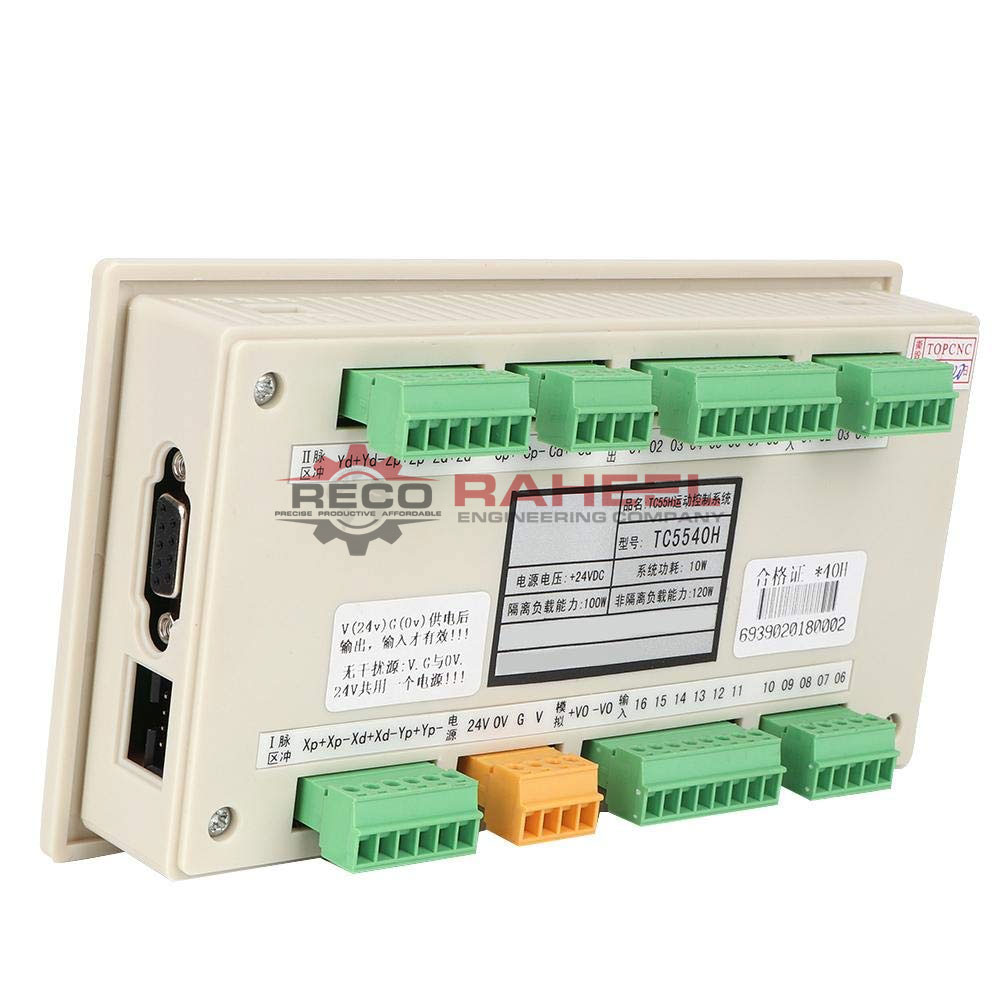

Isolated I/O port
Maximum Program Line:1000
Maximum Program: 99
RAM: 128M
External Manual Operation: motor clockwise and counter-clockwise spinning, start, pause, alert, and stop
G code and M code
One panel MPG

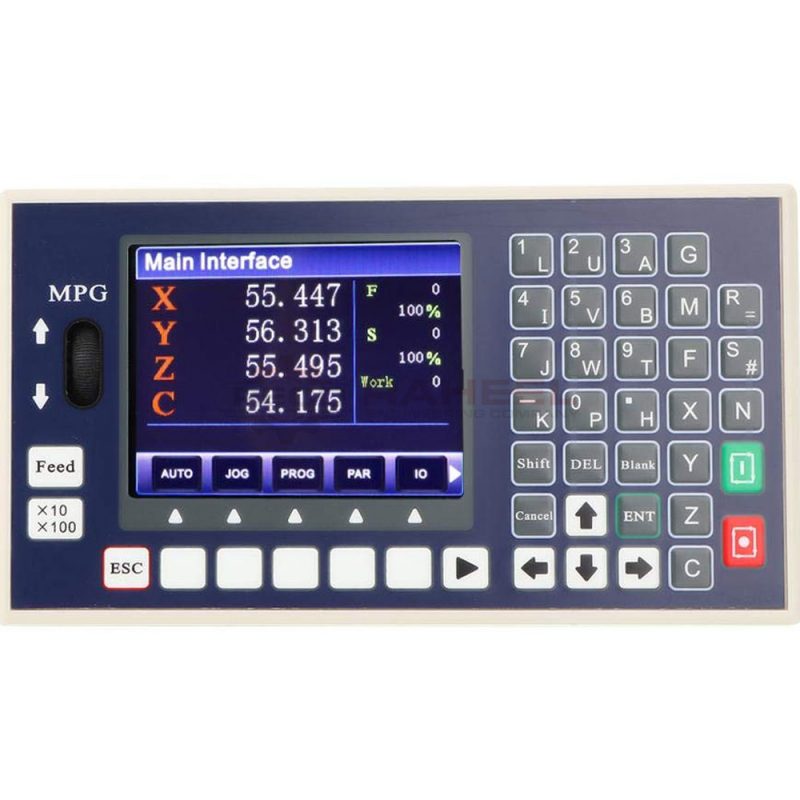

3.5 inch color LCD, pixel 320*240
Analog Spindle Output: one 0-10v analog spindle
Support both servo and stepper motor
Support metric system, round, division, degree, inch etc.
Support USB power supply.
